Introducing the all-new RGB SCART cable for the Sega Genesis Model 1, also fully compatible with the Mega Drive Model 1 and Sega Master System.

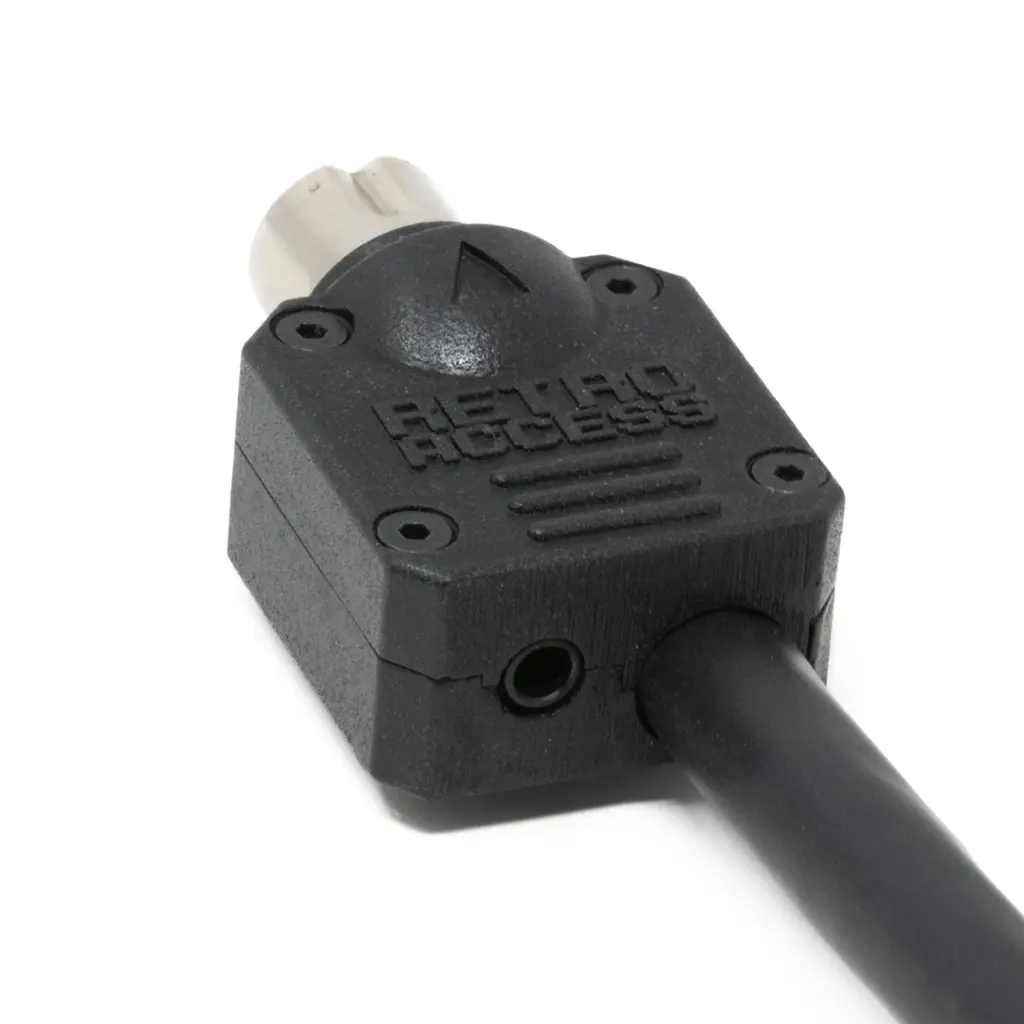

This full-size DIN-8 (262°) RGB cable features an integrated auxiliary “aux” audio jack, allowing seamless use with both the Genesis Model 1 and Master System. The cable supports mono or stereo audio, giving you maximum compatibility in a single solution.
Available exclusively from Retro-Access, this premium RGB cable for the Sega Genesis also includes several technical enhancements designed to deliver the best possible RGB video quality for retro gaming systems:

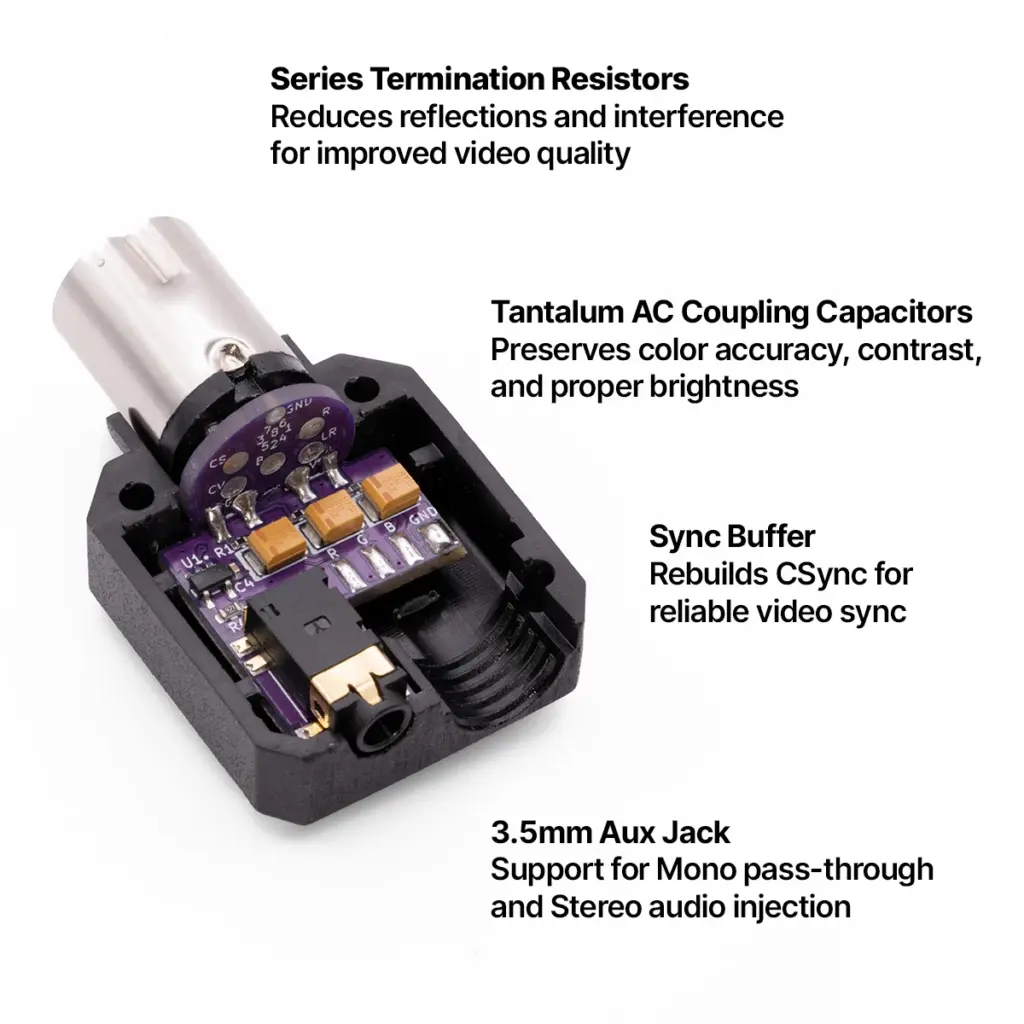

Proper 75Ω Source Termination
Series termination resistors installed directly at the console output establish correct 75-ohm impedance, matching the cable and reducing signal reflections and interference. Many other cables place these resistors inside the SCART connector, which compromises signal accuracy and video quality.
High-Quality RGB AC Coupling
Premium 220 µF Tantalum AC coupling capacitors inside the console connector ensure clean and stable RGBS video signals directly at the source. This prevents DC bias from traveling along the cable and preserves accurate color reproduction, brightness, and contrast.
Buffered Composite Sync (CSync)
An integrated sync buffer with attenuating resistor delivers a stable Composite Sync (CSync) signal, properly conditioned for 75Ω (1 Vp-p) input devices. This ensures reliable video synchronization and eliminates timing errors common with improperly conditioned sync signals.
Available in Mini-Coax or Fortraflex Cable
This Genesis RGB cable is available in two premium cable types:
Miniature Coaxial (Mini-Coax)
A professional-grade 75Ω miniature coaxial cable developed exclusively for Retro-Access to deliver the highest possible analog audio and RGB video quality from retro gaming systems. Each signal line uses precision polyethylene dielectric insulation and individually shielded copper spiral wrap with isolated grounds, maintaining true impedance while preventing reflections, ringing, ghosting, color bleed, and audio interference. Its 100% double-shielded construction meets professional studio and broadcast-grade standards and preserves crisp RGB signals even over longer cable lengths.
Fortraflex
A premium ultra-flexible and highly durable cable designed for everyday use. Each signal line is fully shielded with robust copper wrap to maintain clean analog video while suppressing crosstalk and audio buzz. The soft outer jacket, similar to those used in stage microphone cables and official wired game controllers, provides excellent flexibility and durability while maintaining strong shielding performance.
Whether you’re connecting a Sega Genesis Model 1, Mega Drive, or Sega Master System to a SCART display or modern scaler, this cable is engineered for accurate RGB output and uncompromised retro video performance.
Find yours here: https://retro-access.com/product-category/sega/genesis1/
